In resume :

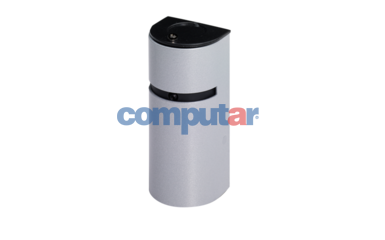

Door Frame Camera, 700 TVL with 3.7mm Lens

DESCRIPTION

  • 700 TVL color camera with 3.7mm wide angle lens
  • Two piece construction for easy installation
  • Fits most standard door frames
  • Durable aluminum construction
  • Curved surface with 180º camera adjustment
  • 12VDC power input with power supply included (24VAC 6" H option available)
  • Available in white, black or silver (call for custom colors)


Conventional security cameras often fail to capture a good facial shot because they are mounted too high or at the wrong angle. Ganz DF-37 series door frame cameras are designed to supplement standard security cameras by clearly capturing a person’s facial image upon exiting a store. They are typically mounted on the door frame at about 5’ height; low enough to see under a hat or hood.

The 700 TVL high-sensitivity camera features a 3.7mm lens housed in a low profile enclosure with a discrete 3/16” viewing slot. It can be adjusted a full 90 degrees to the left and right of center, making it ideal for double doors requiring an angled view. The housing is sized to fit most standard door frames (1.7” width). The power and video cables are typically fed through the rear of the housing into the door frame but can also be channeled through the top or bottom of the unit using conduit. A 12VDC power supply is also included.
