TEC-V7X

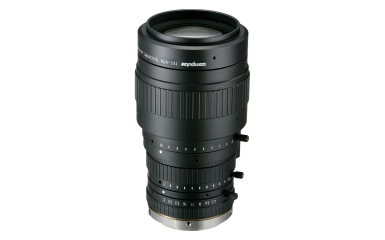

This high performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range. It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners.
The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications. The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments. This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.
DESCRIPTION :
- Telecentric lens : 55 mm
- Format : 1/1”
- Lens mount : C
- Iris control : Manual
- Macro Zoom
- Full Automatic (FA)
- Resolution : 5 Megapixel
- F-Stop [F] : 2.8
