HSW-H37-24

Downloads

• Téléchargement de document pdf : hsw-h37-manuel.pdf (265.4 Ko)
• Téléchargement de document pdf : hsw-h37-specifications.pdf (335.7 Ko)

HSW-H37-24

In resume :

Height Strip Camera, 700 TVL with 3.7mm Lens, 24VAC

DESCRIPTION

Height strip cameras are designed to supplement standard surveillance cameras by capturing a person’s facial image and height upon exiting a store. The HSW-H37 includes a 700 TVL camera with OSD menu control. It is housed in a low profile enclosure with discrete 1/8” viewing slots. The camera can be adjusted a full 90 degrees to the left and right of center, making it ideal for double doors requiring an angled view. Up to 2 additional cameras can be installed for multiple viewing angles.

• 700 TVL color camera with 3.7mm wide angle lens

• Redesigned for easy installation

• Fits most standard door frames

• Durable aluminum construction

• Highly visible color coded height levels

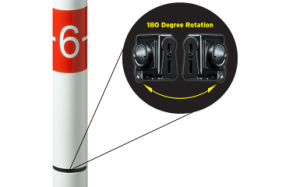

• Curved surface with 180º camera adjustment

• Wrap-around labels visible from side

• 24VAC (also available in 12VDC)

• 1 onboard camera included with base model

• Also available in black (HSB-H37) and silver (HSS-H37)

• "Dummy" model also available
