PT112N-XT
In resume :

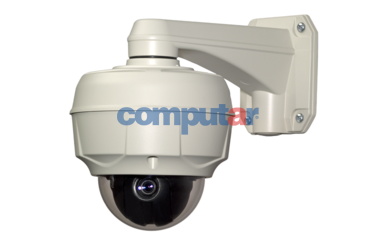

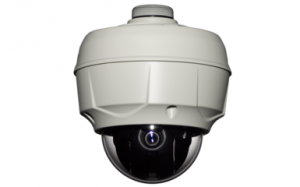

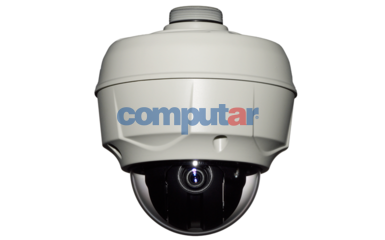

12X Outdoor Vandal Resistant Fully Programmable PTZ Dome
FAST & SILENT MOTION
- Vector drive technology (“shortest path” pan/tilt motion)
- Optimum accuracy with Micro-Stepping motor control
- Zoom-proportional pan/tilt speed
- Fast maximum panning speed (360°/sec)
- Ultra slow manual speed (Min 0.05°/sec)
- Low noise & low vibration
- Endless 360°/sec Pan rotation
SUPERIOR ZOOM CAMERA
- 144X zoom control (Optical 12X, Digital 12X)
- 560 TVL (color) / 600 TVL (black & white)
- True Day/Night (retractable IR cut filter)
- Auto & manual focus control options
POWERFUL FUNCTIONS
- 127 preset positions with alpha-numeric labels
- 4 pattern, 8 swing, and 8 group functions
- 8 privacy zones (Spherical coordinates)
- Auto-flip feature
- Auto-parking (reverts to pre-programmed preset positions, swing, or pattern if no action)
- Power up memory (resumes to all pre-programmed functions upon power-up)
- On-screen display with pan/tilt, zoom, compass
- Built-in alarm sensor in function
- 24VAC Power input
- Compact / vandal-resistant
- Pelco P & D Protocol ready
- IP66 rating for all weather conditions
- Built-in heater
- Optional sun shield available (PT-SS)
COMPANION PRODUCTS
- Companion Products contain accessories, options and additional products that work well with PT112N-XT.
